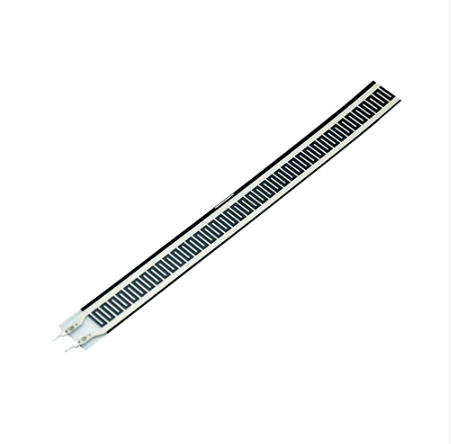

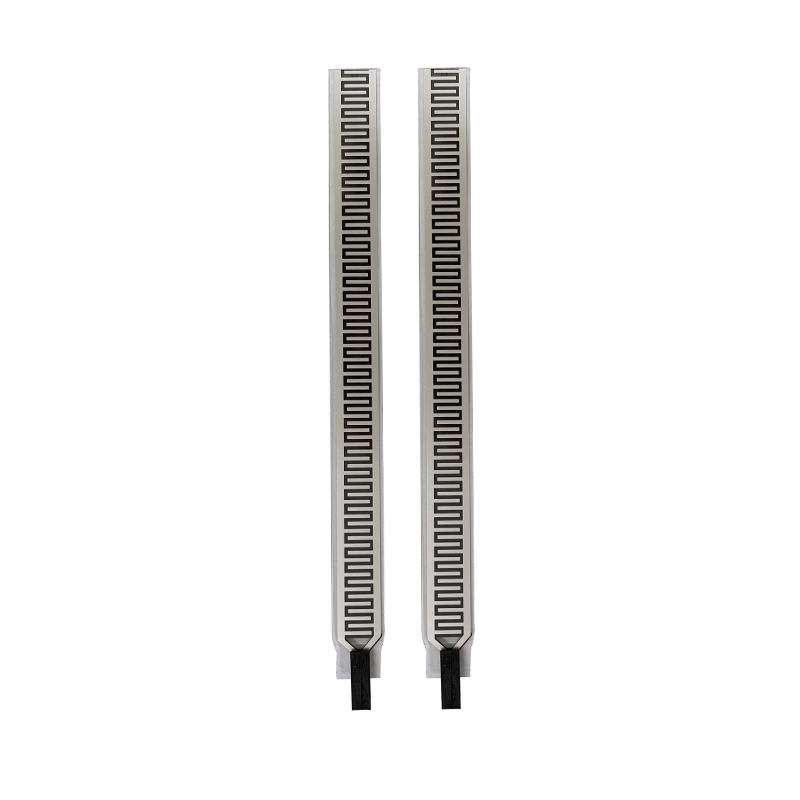

FA408 FORCE SENSING RESISTOR

  • Model:FSR FA408
  • Dimension:171.61*12mm
  • Sensing dimension:Diameter 160*12mm
  • Force measuring range:200g ~ 20KG
  • Thickness:≤0.3mm
  • Force repeatable (single part):±2.5%,8KG applied,10 times
  • Force repeatable (part to part):±20%
  • Off resistance:2MΩ
  • Hysteresis:10% average
  • Response time:<1 ms
  • Working temperature:-30℃~60℃
  • Connector:female 2.54mm / male2.54mm /ZIF 1.0mm/2.54mm

Product Specification

Description :
Flexible pressure sensor (also called FSR) is an ultra-thin (thickness usually around 0.3mm), high-sensitivity resistive pressure sensor. When pressure is applied to the sensing area, the resistance of the sensor changes. The greater the pressure, the lower the resistance. At the same time it will cause the output voltage to change, the greater the pressure, the greater the output voltage. This type of sensor is mainly used to measure the pressure change trend and the pressure distribution in a region (pressure map). There are many applications for this pressure sensor, such as robotic grip sensing, human and animal gait measurement, wheelchair sitting measurement, electronic musical instruments, smart boxing gloves, pressure measurement insoles and more. However, because the pressure detection is not very accurate, it is not recommended to use the situation where the accurate pressure detection is required.
ModelType
FA408Single point force sensor
Use
To measure continuously changing force, or use several sensors to measure pressure distribution at different locations

Features and Benefits :

  • Actuation force as low as 100g and sensitivity range to 10KG
  • Cost effective
  • Ultra thin
  • Long life,more than 2 million times work life
  • Simple and easy to integrate

ItemData
Sensing AreaDiameter 160*12mm
Force measure range200g ~ 20KG
Thickness≤0.3mm
Force repeatable (single part)±2.5%,8KG applied,10 times
Force repeatable (part to part)±20%
Hysteresis10% average
Drift5%,10KG 24hours,logarithmic 10 time
Off resistance2MΩ
Force resolutionContinuous
Response time<1 ms
Operating temperature-30℃~60℃
Life time2 million
ConnectorFemale 2.54mm / Male Pin 2.54mm /ZIF 1.0mm,2.54mm

Download

Pressure VS resistancePressure VS output voltage

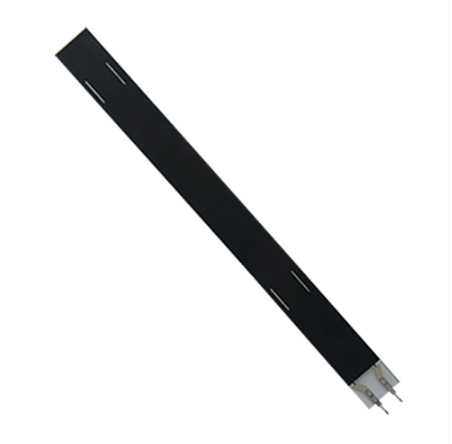

PhotoDrawing
Structure

ntegration and usage methods:
According to the characteristic that FSR resistance value is inversely proportional to the pressure applied on its surface, a basic circuit connection diagram is provided in figure 1 (the selection of Vref and RM values in the figure is a reference value, which can be adjusted by the user according to the actual situation).We put FSR and shunt resistor RM in series in the circuit, apply Vref reference voltage at both ends of the circuit, connect the ADC pin of MCU between FSR and RM, and use the ADC function of MCU to detect the Vout voltage value.
The calculation formula of the output voltage is as follows:

figure1

The measurement resistance RM was selected to maximize the required force sensitivity range and limit the current. Different measurement resistance RM have different effects on the output voltage, as shown in figure 2(The data in the figure are for reference only, not measured data)

figure2
